Trojan 130Ah Deep Cycle Battery (wing nut terminals)

Trojan 130Ah Deep Cycle Battery (wing nut terminals)
Ask a Question
Enter your details and we will get back to you

Product Information

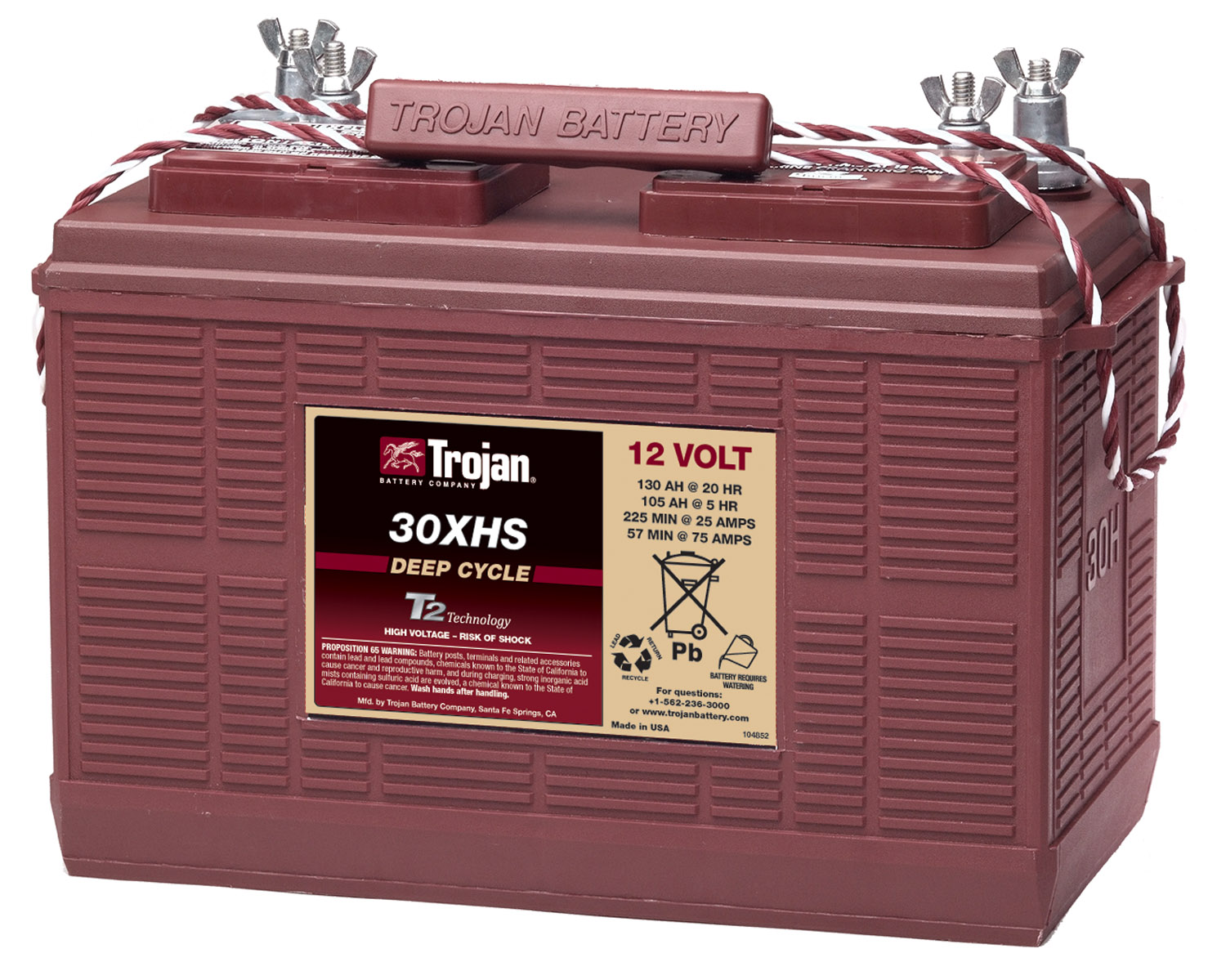

Trojan T2 deep-cycle batteries are, in our opinion, the absolute top of the range and the 130Ah 30XHS is probably the most popular. Renowned for their high electrical performance, long cycle lifetimes and durability, the 30XHS marine battery is suitable for use as both a starter battery and as part of a large battery bank.

Trojan T2 Technology™

MAXIMUM OPERATION PERFORMANCE
Trojan’s Alpha Plus Paste is a proprietary, high-density paste formulation precisely engineered to deliver outstanding battery performance. This high-density paste optimizes porosity development in the active material utilizing the active material more effectively, resulting in sustained battery performance over a longer period of time. Trojan’s T2 Technology introduces a patent-pending T2 metal agent into our Alpha Plus Paste, further strengthening the electrochemical processing capabilities of Trojan’s Alpha Plus Paste. Together Alpha Plus Paste with T2 Technology increase both sustained capacity and total overall ampere-hours, resulting in more operating power for your application. It’s a key reason why Trojan batteries consistently outperform the competition.

REDUCED DOWNTIME
Trojan’s grid technology is a lead antimony alloy grid mixture formulated specifically for use with Trojan’s Alpha Plus Paste with T2 Technology. The grid formulation provides exceptional structural adhesion between the Alpha Plus Paste and the grid frame. Thick grids reinforce the strength of the frame and reduce corrosion. The overall grid configuration is optimized to enhance current flow through the grid network providing exceptional battery performance, reducing downtime and lowering maintenance costs.

LONGER BATTERY LIFE
Exclusively available in Trojan batteries is our Maxguard T2 advanced separator. Trojan’s Maxguard T2 separator features a multi-rib geometry which keeps acid channels open longer, enhancing electrochemical processing while reducing the risk of stratification. Maxguard’s proprietary rubber-based material inhibits antimony transfer between the positive grids and negative plates; a protection not available in many other competitor batteries. A newly fortified, thick back web provides even greater separator strength resulting in a more robust battery, with increased protection against failures caused by separator degradation. Trojan’s Maxguard T2 advanced separator sustains performance providing exceptionally longer battery life and significantly lowering your operating costs.

RUGGED POLYPROPYLENE CASE
Many batteries are fitted in areas where they can be knocked and bumped around or splashed with oil, petrol and diesel. The unique mauve coloured polyproylene outer housing of all Trojan batteries is rigid enough to keep the internal plates and electolyte well compressed, but durable enough to last a lifetime.

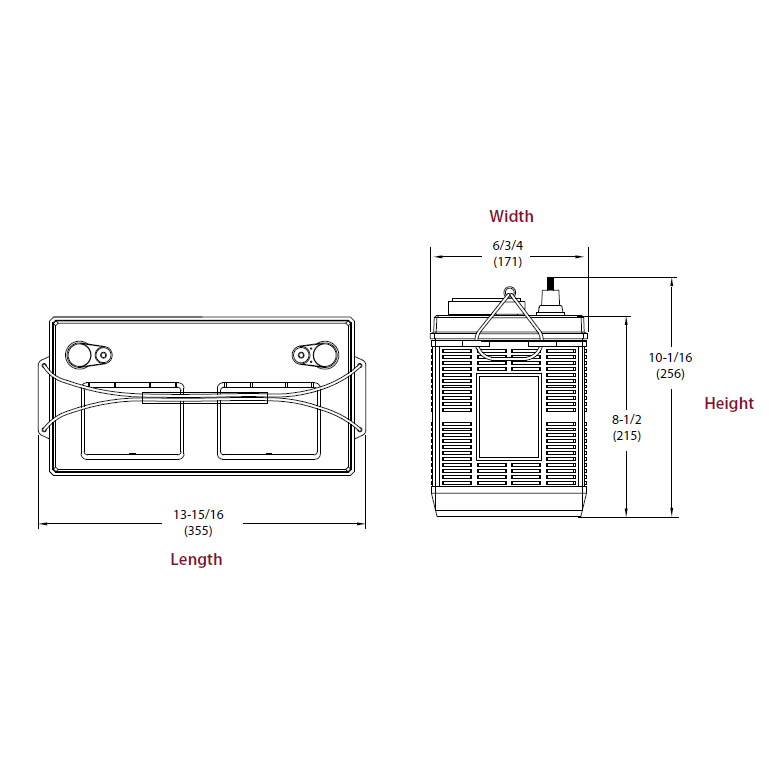

Technical Specification

Capacity (C20 rate)
130Ah
Voltage
12V
CCA
665A
MCA
820A
Length
355mm
max-width
171mm
Height
215mm
Total height inc. terminals
248mm
Weight
30kg

CHARGER VOLTAGE SETTINGS (AT 77F/25C)
System Voltage
6V
12V
24V
36V
48V
Absorption Charge
7.4
14.8
29.6
44.4
59.2
Float Charge
6.6
13.2
36.4
39.6
52.8
Equalize Charge
7.8
15.5
31.0
46.5
62.0

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
