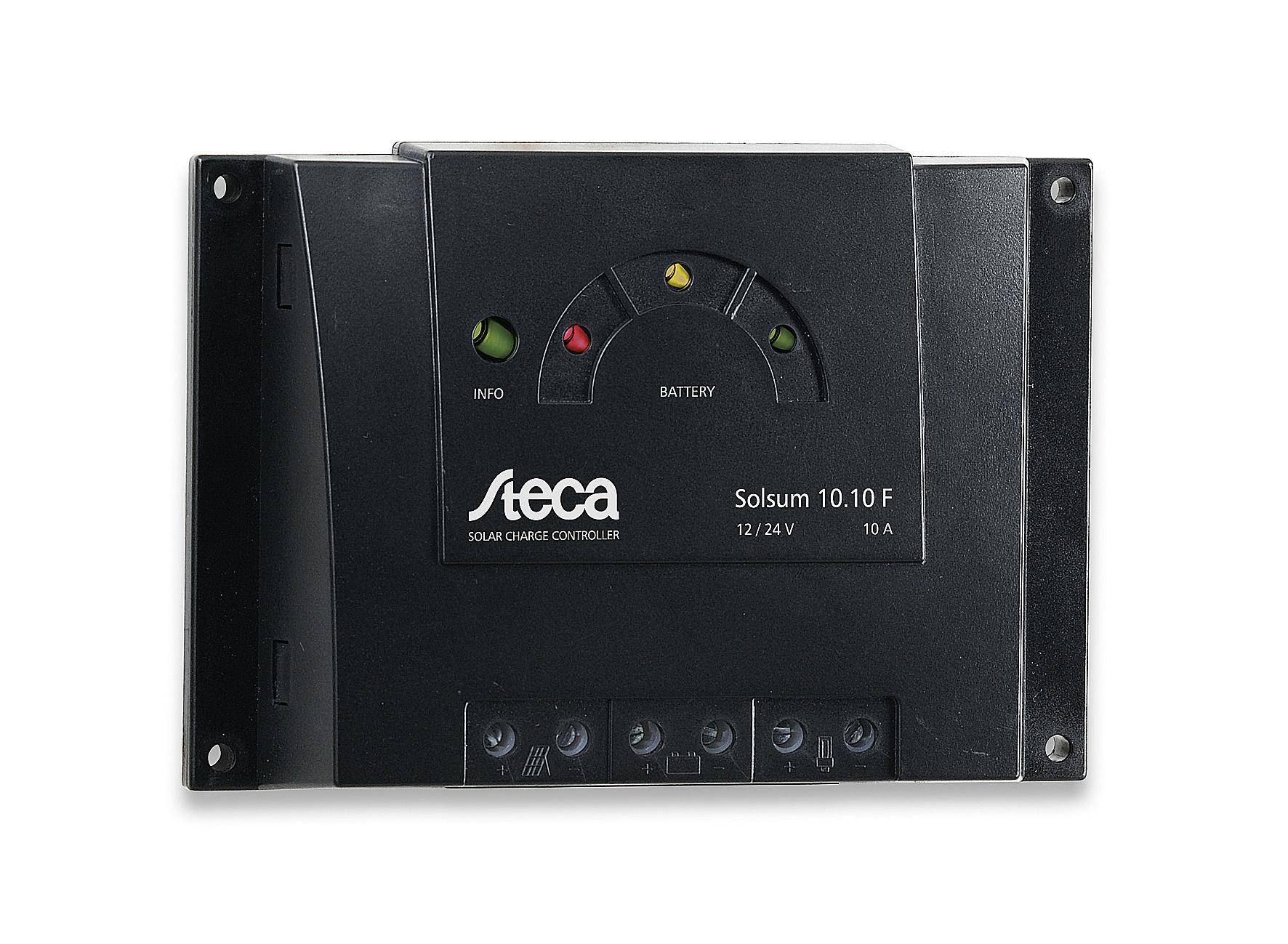

The Steca Solsum F is an easy to use PWM charge controller that's ideal for small systems with up to 10A charge/load current.
- Includes multifunction LED display to show battery status.
- Automatic 12/24V battery voltage detection.
- Current compensated load disconnection
- Automatic load reconnection
- Temperature compensation
- Low self consumption of <4mA
- Terminals take up to 4 sq mm cable
|System voltage ||12 / 24V |
|Power requirement ||< 4mA |
|Open circuit voltage ||< 47V |
|Load current ||10A |
|Reconnect voltage ||12.7V / 25.4V |
|Deep discharge protection ||11.6V / 23.2V |
|Terminal (fine / single wire) ||4mm2 / 6mm2 - AWG 12 / 9 |
|Protection class ||IP 31 |
|Operating temperature ||-25 °C ... + 50°C |
|Dimensions ||145 x 100 x 30mm |
|Weight ||150g |
*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
