Solara Vision Extreme Solar Panel (190W)

Solara Vision Extreme Solar Panel (190W)
Ask a Question
Enter your details and we will get back to you

Product Information

The Solara Vision 190W solar panel is the world's tough glass fronted panel - it's so strong you can drive over it! Designed and manufactured in Germany, the Solara Vision Solar Panel is suited to locations where there's a chance of the solar panel being struck or when the weather is 'extreme'.

One example is the roof of a motorhome, where there is the possibility of the panel being struck by low hanging branches. For marine applications, where weather conditions can sometimes be very harsh and there is always the possibility of the panel being accidentally hit or stood on, with a Vision panel, you won't need to worry about broken glass. Vision panels are guaranteed for use in a salt water (marine) environment.

Top quality for professional off-grid applications:

  • Solar modules with 36 high-performance solar cells
  • Very robust, carries up to 18,000 Pa, hail resistant too
  • Large, waterproof junction box with connection cable and MC4 compatible plugs
  • Sturdy, seawater-resistance aluminium frame (with dewatering holes to avoid frost damage)

Using a unique 'glass-glass' design, the Vision solar panel introduces new levels of robustness to the solar market. Each panel sandwiches the solar cells between two layers of a specially formulated version of laminated safety glass (similar to that in your car's windscreen). The result is a glass solar panel that you can walk on, stand on or even drive on.

Technical Specification

Model: Vision 190
Peak Power: 190W
Rated Voltage: 24.14V
Rated Current: 9.44A
Open Circuit Voltage: 30.13V
Short Circuit Current: 10.09A
Maximum System Voltage: 1000V
Temperature Co-efficient - Power: -0.45%/C
Temperature Co-efficient - Voltage: -0.36%/ C
Temperature Co-efficient - Current: 0.03/C
Panel Efficiency: 15.2%
Weight: 15.0 kg

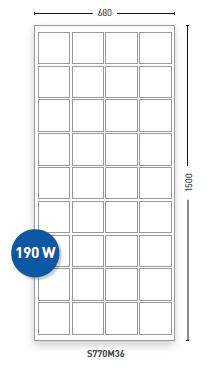

Unit Dimensions (mm): 1500 x 680 x 35

(Specifications at standard test conditions (STC) - STC is defined as: irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature)

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
