Solara Vision 110W Extreme Solar Panel

Solara Vision 110W Extreme Solar Panel
Ask a Question
Enter your details and we will get back to you

Product Information

The world's toughest glass fronted solar panel - so strong you can drive over it! Designed and manufactured in Germany, the Vision Solar Panel is a truly extreme solar panel, for whenever you need something just that little bit stronger.

In some instances, such as where there is a chance of the solar panel being struck or damaged, or when the weather is 'extreme', the Vision panel offers you added peace of mind. One example is the roof of a motorhome, where there is the possibility of the panel being struck by low hanging branches. For marine applications, where weather conditions can sometimes be very harsh and there is always the possibility of the panel being accidentally hit or stood on, with a Vision panel, you won't need to worry about broken glass. Vision panels are guaranteed for use in a salt water (marine) environment.

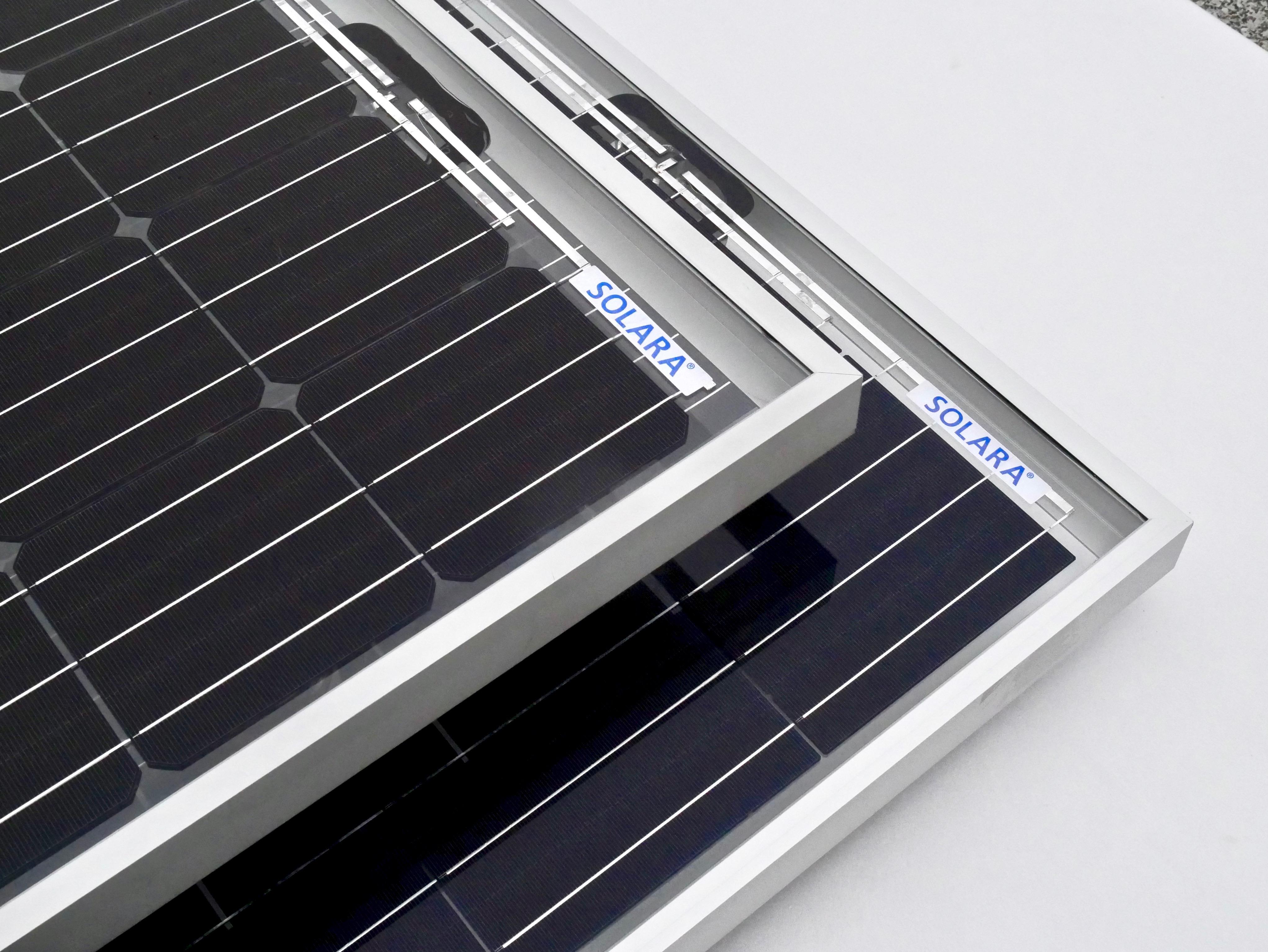

Using a unique 'glass-glass' design, the Vision solar panel introduces new levels of robustness to the solar market. Each panel sandwiches the solar cells between two layers of a specially formulated version of laminated safety glass (similar to that in your car's windscreen). The result is a glass solar panel that you can walk on, stand on or even drive on.

Technical Specification

Model: Vision 110 Vision 160
Peak Power: 110W 160W
Rated Voltage: 17.2V 17.9V
Rated Current: 5.90A 8.39A
Open Circuit Voltage: 21.5V 22.4V
Short Circuit Current: 6.20A 8.83A
Series Fuse Rating: 20A 20A
Maximum System Voltage: 1000V 1000V
Temperature Co-efficient - Power: -0.45%/C -0.45%/C
Temperature Co-efficient - Voltage: -0.36%/ C -0.36%/ C
Temperature Co-efficient - Current: 0.03%/C 0.03/C
Panel Efficiency: 14.5% 15.2%
Weight: 9.0 kg 15.0 kg

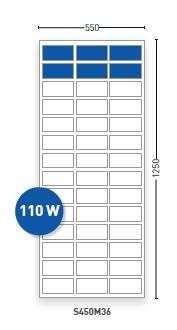

Unit Dimensions (mm): 1252 x 557 x 40 1520 x 672 x 40
(Specifications at standard test conditions (STC) - STC is defined as: irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature)

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
