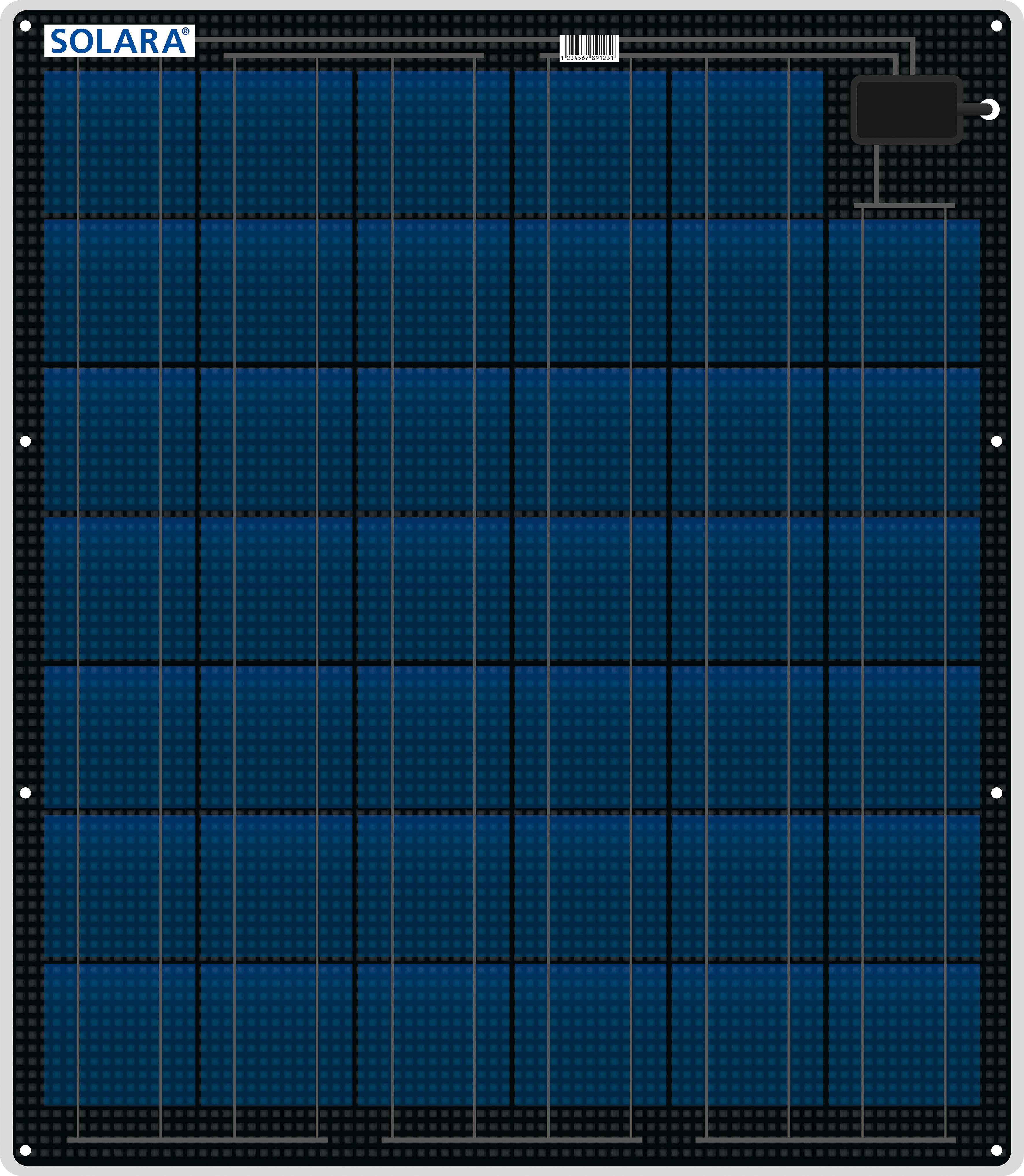

Solara Marine Solar Panel 80W M-Series (2016 Model)

Solara Marine Solar Panel 80W M-Series (2016 Model)
Ask a Question
Enter your details and we will get back to you

Product Information

Revised for 2016, the Solara 80W panel is the largest in the M-Series range and has been fitted with additional cells to boost power output. All Solara Marine Solar Panels now have an industry leading 5-year warranty.

The innovative Solara M-Series design is a truly 'walkable' solar panel, with a sturdy aluminium back plate, keeping weight to a minimum and allowing for up to a 3% curved surface. The teflon coated and 'roughened' front surface ensures that this panel is non-slip, even when wet.

Main features:

  • 80W output
  • only 3-5mm thick when installed (15mm at cable outlet)
  • integrated temperature compensating cells
  • sea-water tight cable outlet
  • self-cleaning, non-slip surface
  • can be walked on when fitted
  • 2.5m UV-resistant cable for easy installation
  • 5 year product warranty

Typical installations:

  • motor boats
  • sailing yachts
  • specialist marine applications
  • caravans and motorhomes

Technical Specification

SPECIFICATIONS S320P41
Peak Power (W): 80
System Voltage (V): 12
Voltage at Peak Power (V): 21.81
Open Circuit Voltage (V): 25.87
Current at Peak Power (A): 3.62
Short Circuit Current (A): 3.84
Number of Cells: 41

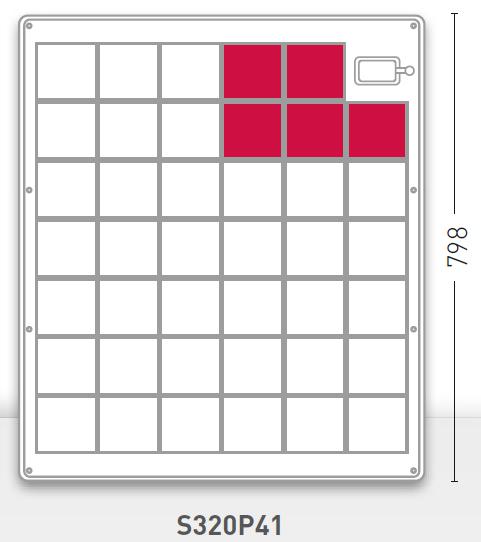

Dimensions (mm) L x W x H: 798 x 695 x 2
Weight (Kg): 3.70
External hotspot protector: Yes

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
