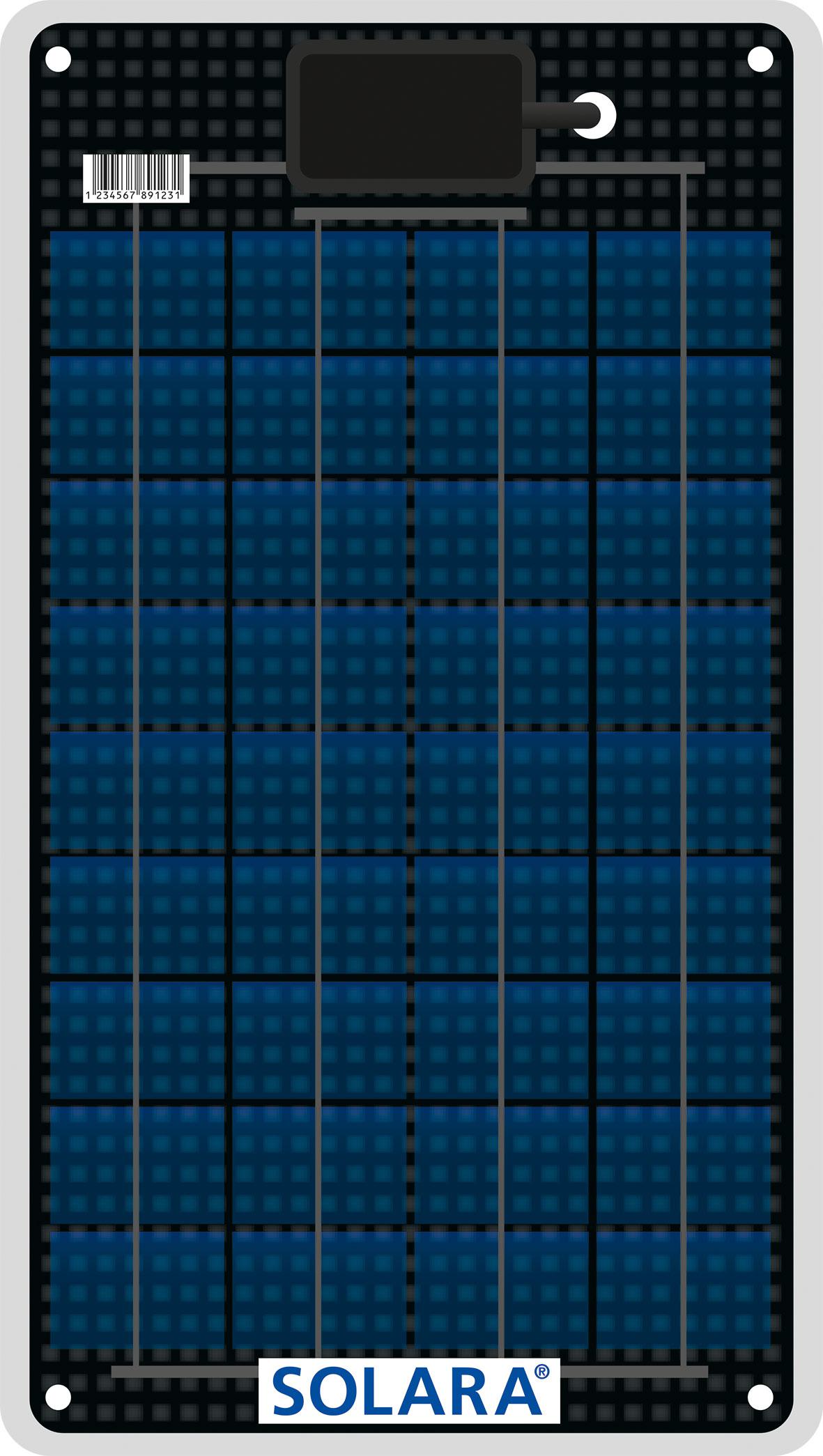

Solara Marine Solar Panel 12W M-Series (2016 Model)

Solara Marine Solar Panel 12W M-Series (2016 Model)
Ask a Question
Enter your details and we will get back to you

Product Information

The 12w Solara marine specification solar panel is robust, reliable and incredibly weather-proof. All Solara Marine Solar Panels now have a 5-year warranty.

The Solara acid- and salt- resistant aluminium back-plate provides exceptional stability, whilst still allowing for adjustments on slightly curved surfaces (up to 3%). The 'walk-on' plastic front cover prevents breakage and the unique teflon coating means it is slip-proof, even in wet conditions. Ideally suited for glued and fixed installations.

Main features:

  • 12Wp power output
  • only 3-5mm thick when installed (15mm at cable outlet)
  • integrated temperature compensating cells
  • sea-water tight cable outlet
  • self-cleaning, non-slip surface
  • can be walked on when fitted
  • 2.5m UV-resistant cable for easy installation
  • 5 years warranty

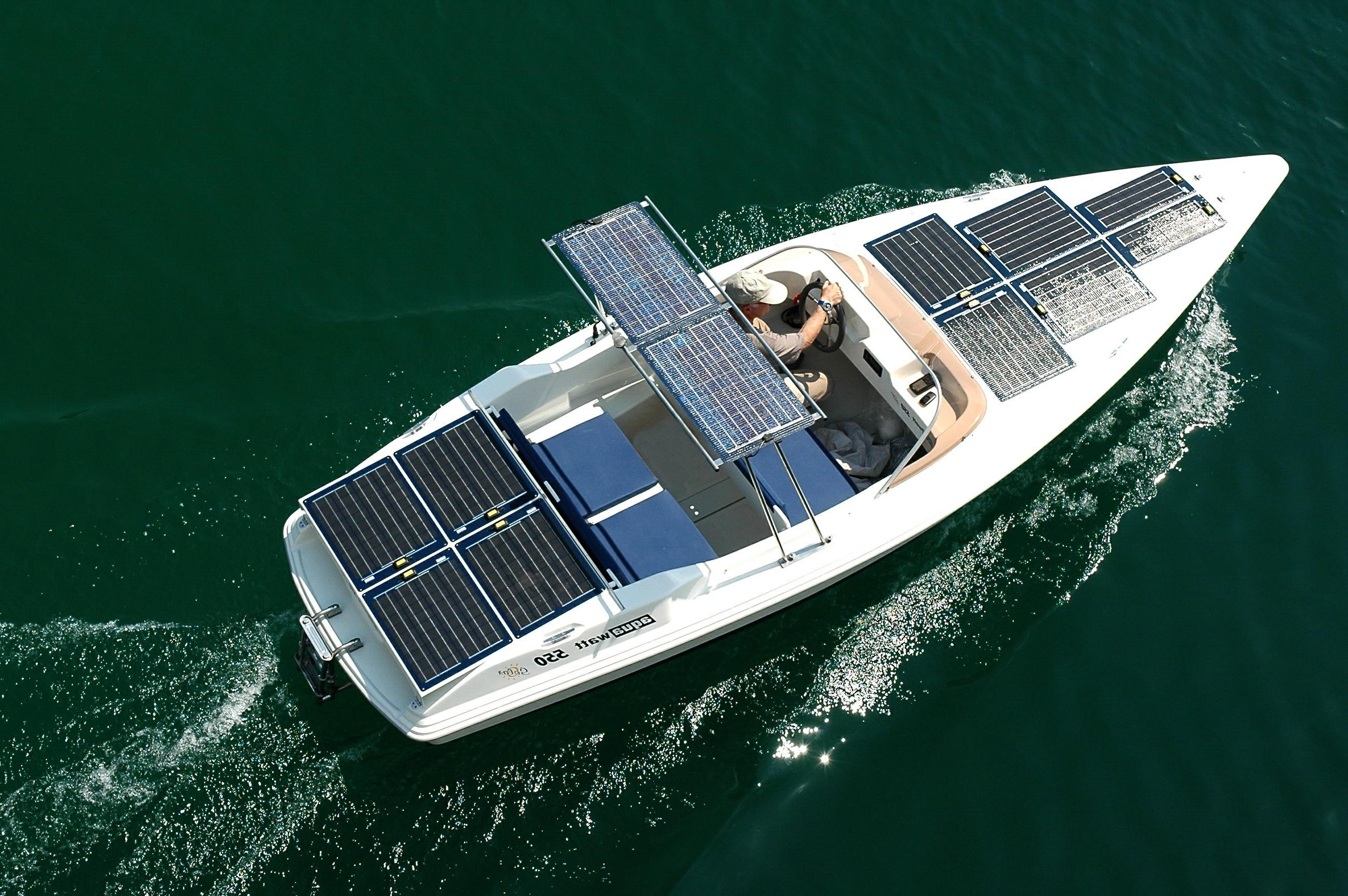

Typical installations:

  • motor boats
  • sailing yachts
  • specialist marine applications
  • caravans and motorhomes

Technical Specification

SPECIFICATIONS S50P36
Peak Power (W): 12
System Voltage (V): 12
Voltage at Peak Power (V): 19.15
Open Circuit Voltage (V): 22.72
Current at Peak Power (A): 0.61
Short Circuit Current (A): 0.65
Number of Cells: 36

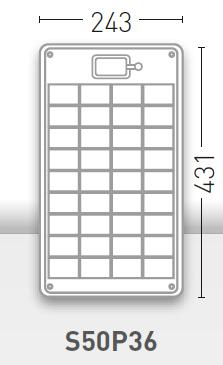

Dimensions (mm) L x W x H: 431 x 243 x 2
Weight (Kg): 0.9

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
