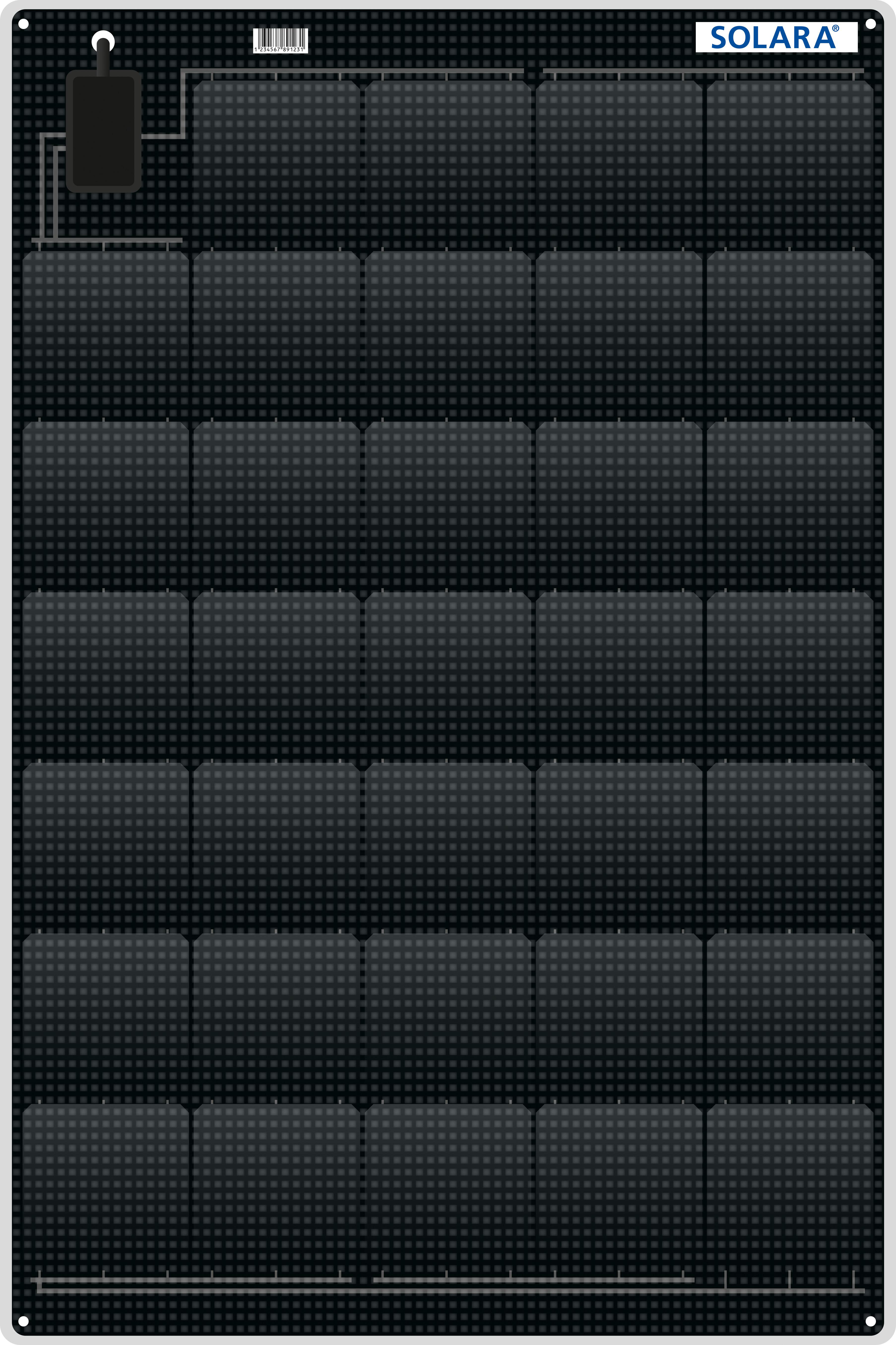

Solara Marine Solar Panel 115W Power Series (2019 Model)

Solara Marine Solar Panel 115W Power Series (2019 Model)
Ask a Question
Enter your details and we will get back to you

Product Information

The 'POWER' series of solar panels from Solara use the Sunpower ultra-high efficiency solar cells with a cell efficiency of 23%. The 115W Solara Power Series Panel is a truly walkable marine-grade panel producing 100W in power, whilst maintaining a compact design. This is an ideal panel for larger installations, or for when space is at an absolute premium. All Solara Marine Solar Panels now have a 5-year warranty.

Appearance and design:

  • Elegant and attractive design can be walked on
  • Extremely flat (4mm) with aluminium plate inside
  • Flexible for mounting on curved surfaces (up to 3%)
  • Pre-installed cable gland in the carrier plate

Excellent performance with top quality:

  • Highest efficiency back-contact cells (23%)
  • Best low-light behaviour – high yields even in poor conditions
  • Fully tested and warrantied in marine (salt water) environments
  • Equipped with a 2.5m UV resistant solar cable and mounting holes
  • External cell protector with bypass diodes protects against overheating
  • Manufactured exclusively in Germany
  • Product warranty 5 years

Technical Specification

SPECIFICATIONS S505M34
Peak Power (W): 115
System Voltage (V): 12
Voltage at Peak Power (V): 19.82
Open Circuit Voltage (V): 24.22
Current at Peak Power (A): 5.80
Short Circuit Current (A): 6.30
Number of Cells: 34
Dimensions (mm) L x W x H: 990 x 680 x 4
Weight (Kg): 4.20

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
