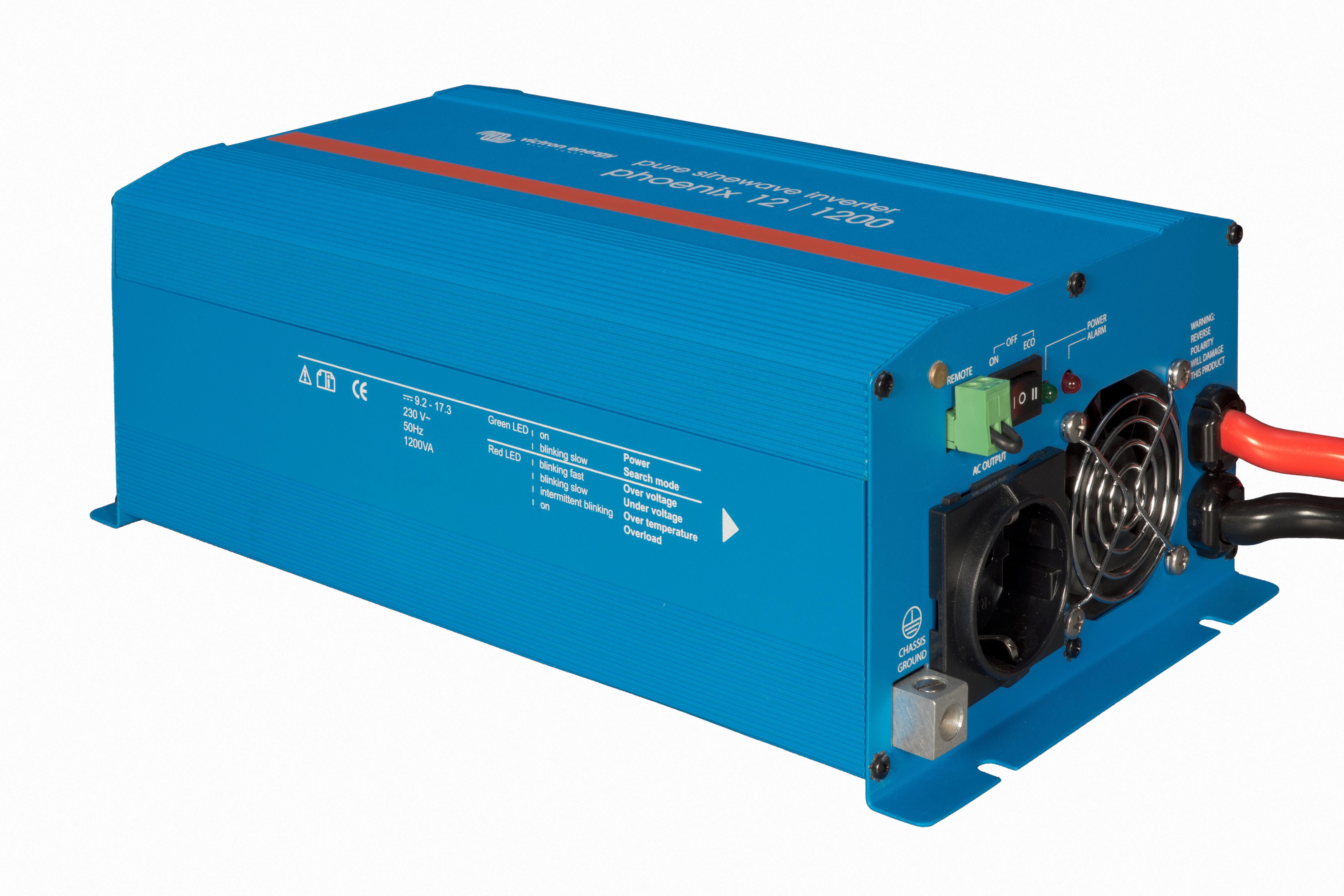

1200VA Victron Phoenix Inverter UK (12/24/48V) with VE.Direct

1200VA Victron Phoenix Inverter UK (12/24/48V) with VE.Direct
Ask a Question
Enter your details and we will get back to you

Product Information

The Victron Phoenix 12/1200, 24/1200 and 48/1200 Inverters convert battery voltage (12V, 24V, 48V DC) to mains voltage (230V AC) to run appliances.

Now with a VE.Direct port these inverters can be connected to:

  • A computer (VE.Direct to USB interface cable needed)
  • Apple and Android smartphones, tablets, macbooks and other devices (VE.Direct Bluetooth Smart dongle needed)

Configurable options:

  • Low voltage alarm trip and reset levels
  • Low voltage cut-off and restart levels
  • Output voltage 210 - 245V
  • Frequency 50Hz or 60Hz
  • ECO mode on/off and ECO mode sense level

 Monitoring:

  • In and output voltage and current alarms

Technical Specification

PHOENIX INVERTER MODEL
12/800
12/1200
24/800
24/1200
48/800
48/1200
Cont. AC power at 25 C (VA) (3)
800
1200
Cont. power at 25 C / 40 C (W)
700 / 650
1000 / 900
Peak power (W)
1600
2400
Low battery shut down (V DC)
9,2 / 18,4 / 36,8
Low battery auto recovery (V DC)
12,5 / 25 / 50
Max. efficiency (%)
91 / 93 / 94
92 / 94 / 94
Zero-load power (W)
6 / 5 / 4
6 / 5 / 6
Zero-load power in search mode
2
2
Standard AC outlets
230V: IEC-320 (IEC-320 plug included), CEE 7/4 (Schuko)
120V: Nema 5-15R
Other outlets (at request)
BS 1363 (United Kingdom) AN/NZS 3112 (Australia, New Zealand)
Protection category
IP20
Weight (kg / lbs)
6,5 / 14.3
8,5 / 18.7
Dimensions (hxwxd in mm)
108x165x305
108x165x305
ACCESSORIES
Remote control panel
Optional
n.a.
Remote on-off switch
RJ12 plug
Two pole connector
Automatic transfer switch
Filax

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
