Product Information

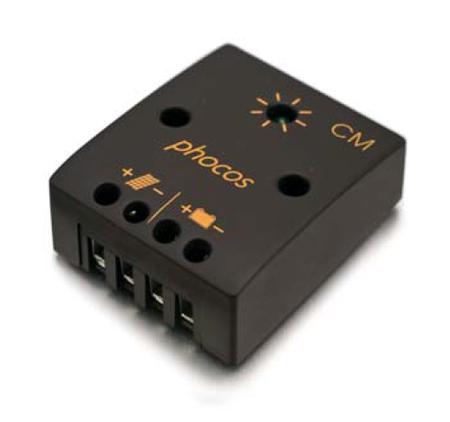

The low cost Phocos CM charge controller is especially for use in small solar systems where no load disconnect is required, as in yachts, caravans, etc. The charging regime provides best battery treatment at reasonable cost. The electronic circuit is equipped with a microcontroller that provides high-efficiency charging technology.

Key features:

  • Charging display with LED
  • Large terminals (up to 16mm2)
  • PWM-regulation
  • Boost & float charging method
  • Solid-state overvoltage protection
  • Reverse polarity protection
  • Cost effective

Technical Specification

Normal Voltage 12V
Boost Voltage 14.5V
Max.module current 10A
Dimensions 72.6x61x30.4mm
Weight 68g
Max. wire size 16mm2
Self consumption <4mA
Temperature range -40 to +50C
Type of protection IP22

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
