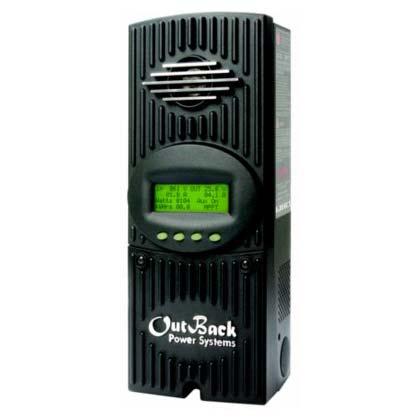

Outback MX60 60A MPPT Solar Charge Controller

Outback MX60 60A MPPT Solar Charge Controller
Ask a Question
Enter your details and we will get back to you

Product Information

OutBack's industry leading MX60 Maximum Power Point Tracking (MPPT) Solar Charge Controller offers a cost-effective reliable 60A unit. Innovative solar harvesting and battery charging algorithms allow you to maximize your systems potential and can increase your renewable energy yield by up to 30%.

Regardless of the age of your solar panels, the degree of shading or other environmental conditions, the combination of advanced MPPT algorithms with the MX60's peak operating efficiency of 98%, means you always get the most out of your solar energy system. The MX60 also benefits from a very wide DC input range and can operate at 12, 24 or 48V so you get maximum flexibility. The MX60's ability to significantly step-down a high voltage solar array to much lower battery voltages allows you to use smaller cabling whilst avoiding significant power loss.

As you would expect from a quality system controller, the MX60 has a built-in 3.1' (8 cm) backlit LCD screen which displays comprehensive system status information, as well as datalogging capacity for up to 64-days' energy production.

Technical Specification

Nominal BatteryVoltages 12, 24, 32, 36, 48, 54 or 60 VDC (selectable)
Output Current 60 amps max., adjustable
Maximum Solar Array Size 12V 800 Watts / 24V 1600 Watts / 48V 3200 Watts
PV Open Circuit Voltage (VOC) 150V max. / 140V operating
Standby Power Consumption <1W
Charging Regulation Five Stages: Bulk, Absorption, Float, Silent and Equalization
Voltage Regulation Set points 10 to 80V, user adjustable
Equalization Voltage Up to 5.0 V above Absorb Set point
Voltage Step-Down Capability Yes
Power Conversion Efficiency 98% at 60 amps, 48V
Status Display 3.1" (8 cm) backlit LCD
Remote Interface Proprietary network (RJ 45 / CAT 5e)
Data Logging 64 days
Operating Temperature Range -40C to +60C
Environmental Rating Indoor Type 1
Warranty 2 years
Weight 5.3kg / 6.4kg shipped
Dimensions (H x W x L) 40 x 14 x 10 cm

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
