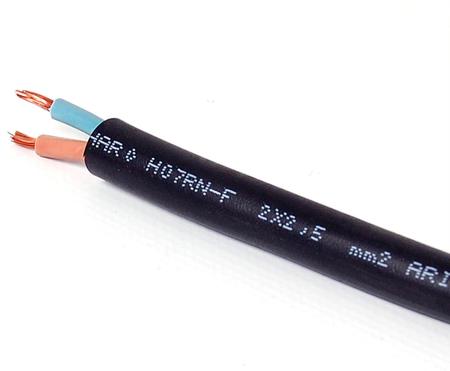

Solar Cable, twin core H07 RN-F 2 x 2.5mm (1.65 / m)

Solar Cable, twin core H07 RN-F 2 x 2.5mm (1.65 / m)
Ask a Question
Enter your details and we will get back to you

Product Information

Very high quality flexible twin core 2.5mm solar cable. Available in lengths of 5, 10, 15 or 20m. For other lengths, please contact us.

Technical Specification

Cores

2

Cross section (mm2)

2.5

Outer diameter (mm)

10.2 to 13.1

Minimum bending radius for use permanently installed

4 x outer diameter

Minimum bending radius for flexible use

7.5 x OD

Temperature range

-30 to 60 C

Copper weight kg / km

48

P max. (N / mm2)

15

Weight Kg / km

195

Conductor

DIN 0282 part 4 according to
IEC 60245-4 HD 22.4 S3

Nominal voltage U0 / U

450 / 750 V

Nominal voltage U0 / U in protected and fixedinstallation

600 / 1000 V

Nominal voltage U0 / U maximum permissible in three phaseand single phase AC systems

476 / 825 V

Nominal voltage U0 / U in DC systems

616 / 1238 V

Test voltage

2500 V

Colour

Black

  • Bare copper, stranded to DIN VDE 0295 class 5, BS 6360 cl 5, IEC 60228 andHD 383
  • Rubber core insulation EI4 DIN VDE 0282 Part 1
  • Insulating wall according to DIN VDE 0282 Part 4
  • Core identification to DIN VDE 0293-308 and HD 186
  • Core colors blue, brown
  • EM 2 rubber outer jacket to DIN VDE 0282 Part 1
  • Sheath thickness to DIN VDE 0282 Part 4
  • Sheath color black

*All technical specifications and images are correct at the time of publication, but are subject to change without notice.
